Optimum capacity utilization

11/16/18
Adhesives

RAMPF Production Systems has developed and manufactured an innovative production plant for the automotive supplier Continental. Thanks to a patented bonding procedure and a very high level of automation and flexibility, the plant ensures optimum capacity utilization for the manufacture of optically bonded displays.

Automotive applications, mobile devices, GPS, industry monitors, navigation devices, wearables – Each time a new generation of electronic equipment is launched to the market, customers demand even better performance and functions.

The same applies to displays. Users want them to be easier to read, more robust, thinner, and have a longer service life, among other qualities.

To meet these demands, leading manufacturers are using optical bonding technology, a process in which an optically clear liquid adhesive is bonds together two transparent components.

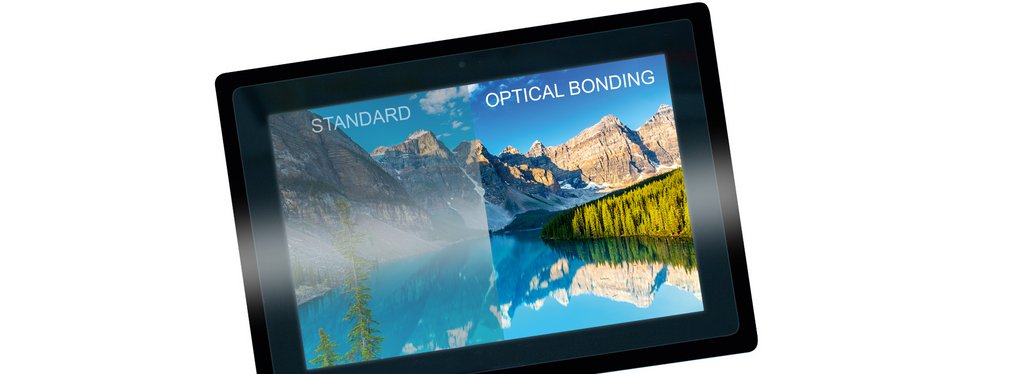

Crystal clear – thanks to optical bonding

During the bonding process, the adhesive fills the gaps between the LCD module and the covering glass, thus significantly improving display quality. However, applying the adhesive poses a particular challenge. To solve this, RAMPF has developed a fully automated process that both ensures air bubble-free application and bonds the components together.

“The production process we have developed reduces the scrap rate to virtually zero,” says Sascha Bender, Key Account Manager at RAMPF Production Systems, “but that is not the only advantage.”

 The very close collaboration between both partners was crucial to the project’s success. For example, RAMPF developed numerous prototypes at its in-house technology unit that experts from Continental could use to test out their production. We communicated with each other very openly and transparently, which enabled us to meet our customer’s demands in full and in a short space of time

explains Sascha Bender, Key Account Manager at RAMPF Production Systems

Continental, a leading manufacturer of optically bonded displays for the automotive sector, asked RAMPF to develop a plant based on this bonding technology that would set new standards with maximum automation and flexibility.

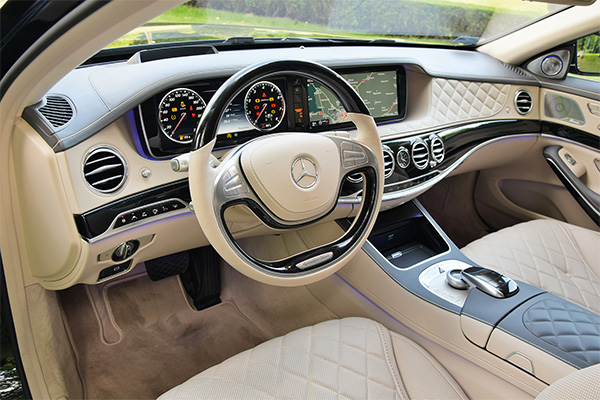

Displays manufactured by Continental are used by leading automobile manufacturers, among others. Over recent years, RAMPF has supplied Continental with numerous plants for manufacturing optically bonded displays. The fully automated production systems are in use around the globe and produce optically bonded display assemblies in three-shift operations.

Now Continental wanted to take the same plant technology used to manufacture displays for passenger cars and use it to make displays for commercial vehicles, too. Since the unit numbers are much lower than those for passenger cars, the plant would have to be exceptionally flexible to maximize the number of different product variants it could handle. The aim was therefore to optimize capacity utilization.

Investing in the future

RAMPF took the customer’s specifications and designed a production plant based on the core process of dispensing and joining display assemblies in a vacuum. To achieve maximum flexibility, a customized workpiece carrier system was also developed to transport the various assemblies through the plant. All the operators need to do to produce different types of products is replace the workpiece carriers.

The production plant, which has been installed in a cleanroom at the Continental plant in Budapest, Hungary, has been manufacturing assemblies in one-minute cycles since August 2017. The exceptional level of flexibility allows Continental to continuously increase the number of different products it manufactures.

“The plant is an investment in the future,” points out Sascha Bender. “Continental can now break into even more customer segments with its display technology without having to make any big investments.”
