Electrifying the automotive industry


The complete electrification of automobiles is an emerging trend. This isn’t just the case for cars, but also bicycles, buses, and trucks.

Despite highly promising forecasts, electromobility has not met expectations both in terms of market share and technological progress.

Experts nevertheless agree that electromobility will conquer the market sooner rather than later, thereby replacing the classic combustion motor.

In the fast lane

This development is being accelerated by polyurethane, silicone, and epoxy resins, which are being increasingly used in electromobility applications to seal battery covers, charging stations, and door mounting structures; and to cast transformers and sensors.

But which material is the most suitable for which application?

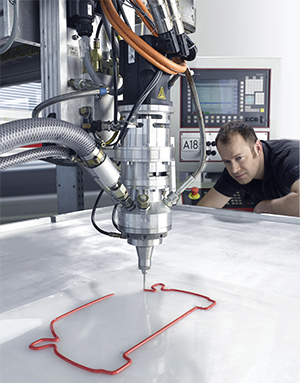

A tight seal – dependable and efficient protection from moisture, chemicals, and various environmental influences – is fundamental to the long-term performance of automotive parts.

Thanks to  the very low water absorption, strong adhesion, high  temperature resistance, and the cost-effective manufacturing process, foam gaskets are used by leading manufacturers across the globe.

Polyurethane and silicone systems only differ in a few aspects, most notably in terms of their adhesion properties, chemical resistance, water absorption, and temperature range.

Polyurethane systems – which are categorized into thixotropic and liquid systems – adhere well to almost all surfaces, such as PP, ABS, PC, and PMMA. Properties such as hardness and volumetric weight can be modified by adjusting the mixing ratio.

To ensure that silicone systems adhere well, a pre-treatment using plasma or a primer is usually required. The mixing ratio has no significant impact on the hardness or volumetric weight in this respect.

A major advantage of silicone systems is their high temperature resistance, which ranges from -60°C to +200°C, up to +300°C for short periods. The temperature resistance of polyurethane systems, in contrast, ranges from -40°C to +90°C, up to +140°C for short periods.

Both silicone and polyurethane exhibit very low water absorption, very strong chemical resistance, and adhere within a very short time.

The high-performance systems are used, amongst others, in the automotive sector as well as in control cabinets, household appliances, the lighting industry, and medical technology.

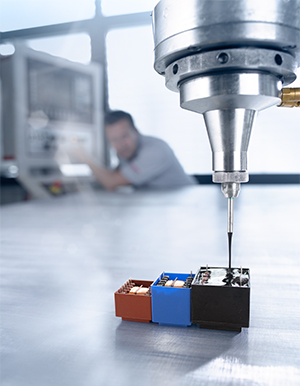

The difference between polyurethane, epoxy resin, and silicone systems in electro casting resins

Electro casting resins based on polyurethane (RAKU® PUR), silicone (RAKU® SIL), and epoxy (RAKU® POX) are key to the further development of electromobility.

With high thermal, chemical, and mechanical resistance as well as reliable and effective protection against environmental influences, electro casting resins ensure the optimal and long-term functionality of sensitive electronic components.

The adhesion properties in terms of casting are similar to those when using foam gaskets.

  • Polyurethane adheres well to housings and components, particularly to plastic (PA, PBT, ABS)
  • Epoxy resins exhibit good adhesion to metals
  • Silicone adheres well to mineral substrates; with other substrates – as with foam gaskets – pre-treatment is often necessary before the silicone can be used

The temperature range of polyurethane is -60°C to +155°C, up to +160°C for sho rt periods.Epoxy systems operate between -40°C and  +180°C, up to 200°C for short periods.Here, too, the temperature range of silicone systems is impressive – ranging from -60°C to +200°C, up to +300°C for short periods.

During casting, good electrical properties and mechanical values, high thermal conductivity, and high thermal dimensional stability are also important. These factors must also be considered when choosing materials.

Material and machines from a single source

“Material manufacturers should provide their customers with comprehensive advice on and assistance with selecting materials and producing parts,” says Frank Birkelbach, Director of Sales & Marketing at RAMPF Polymer Solutions. “Our experts are always on hand to provide practical support to our customers. To do so, we can rely on over 35 years’ experience in developing and manufacturing polyurethane, silicone, and epoxy resins.”

Nowadays, even the best plastic systems are useless if they cannot be processed precisely. “Mixing and dispensing technology and the casting resin system need to be perfectly aligned with one another,” explains Martin Hämmerle, Head of Application Engineering at RAMPF Polymer Solutions. “We therefore work very closely with our colleagues at RAMPF Production Systems in the areas of mixing and dispensing systems as well as automation solutions.”
